Features
Innovative Lean-to-Steer Technology
This advanced solution allows the operator to control all motion with one hand.
Agitation System
You can mix chemicals in the tank and keep them in suspension, thanks to our innovative agitation system.
Intuitive Controls
Everything you need at your fingertips, allowing you to make easy adjustments and maintain total control.
Spacious Hopper
Hopper can hold 175 lbs. An extra 50 lb bag can also be placed in carrier on top of the tank.
Operator Comfort
Stainless steel operator platform with isolation mounts for a more comfortable ride. Locks up or down for storage.
Specifications
Equipment | |
Front Tires | 13 x 6.5-6 |
Rear Tires | 18 x 7.5-8 |
Frame | Stainless Steel |
UPC | 193308000886 |
Power Components | |
Fuel System | KOHLER CH395 |
Displacement | 277cc |
Transmission | Hydrostatic |
Drive System | Tuff Torq |
Fuel Capacity | 1.85 gal |
Ground Speed | 0–5.5 mph (8.8 kmph) forward, 0–4.0 mph (6.4 kmph) reverse |
Engine Spec | 3178 |
Engine Brand | Kohler |
Engine Model | CH395 |
Dimensions | |
Length | 67.5 in. |
Width | 35.5 in. |
Height | 51.5 in. |
Curb Weight | 500 |
Spreader System | |
Hopper Capacity | 175 lbs. + 50 lbs. on spray tank; 12 VDC, 2 hp motor |
Spread Width | Adjustable from 4 ft up to 22 ft |
Tank Capacity | 20 gal |
Pump | Remco |
Spray Rate | Wide - 0.69 gpm at 30 psi, 0.80 gpm at 40 psi; Narrow - 0.35 gpm at 30 psi, 0.40 gpm at 40 psi |
Spray Width | Wide spray up to 11 ft wide; Narrow spray up to 5 ft wide |
Accessories and Attachments
15 ft Hose Tray
The 15ft hose tray can be added to your spreader-sprayer in order to protect the hose from foreign objects while spraying.
Anti-Siphon Assembly
Allows you to fill the tank from potable water source and protects from chemicals being siphoned back into the source.
Multi-Purpose Bag
Allows you to carry up to two-and-a-half gallon hand-held pump sprayer to provide the ability to apply different spray application. Can also be easily adjusted for smaller uses or removed to fit through gates.
Spray Nozzle (Brown)
TeeJet Turbo FloodJet TF-VS2.5
Spray Nozzle (Red)
TeeJet Turbo FloodJet TF-VS2
Hopper Screen (Large Hole)
Optional hopper screen with large holes to customize your preference based on dry material application.
Spray Wand
Optional spray wand available to customize to your spray preference.
Spray Wand
Optional spray wand available to customize to your spray preference.
30 ft Hose and Tray
Allows you to step away from the sprayer to spray in bedding areas, tiered landscapes and hard to reach areas. Kit comes with extended hose tray to protect the hose from foreign objects.
Cable Guard Assembly
Protect your engine cables from foreign objects such as branches and shrubs while operating the machine.
Spray Nozzle (Blue)
TeeJet Turbo FloodJet TF-VS5
Spray Nozzle (Gray)
TeeJet Turbo FloodJet TF-VS3
Spray Nozzle (White)
TeeJet Turbo FloodJet TF-VS4

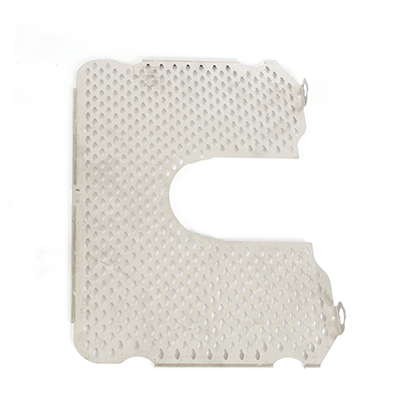

Hopper Screen (Small Hole)
Optional hopper screen with small holes to customize your preference based on dry material application.
Spray Wand
Optional spray wand available to customize to your spray preference.
Spray Wand TeeJet 22670
Optional spray wand available to customize to your spray preference.
